Bryn Mawr Screened Porch Pavilion + Fountain Courtyard
       
     
 On the back side of the fireplace is the fountain, which graces the modified courtyard (now more enclosed) with a visual focal point and the pleasing sound of falling water. The fountain and basin has a cast stone surround and cast stone lion founta
       
     
 Design & Construction model of the proposed pavilion; Showing the new courtyard with chimney and fountain.  By JBNai for Gardner/Fox Associates Inc. on a consulting basis. The Architect of Record is Mark Fox.
       
     
       
     
 Floor and Roof Plan.
       
     

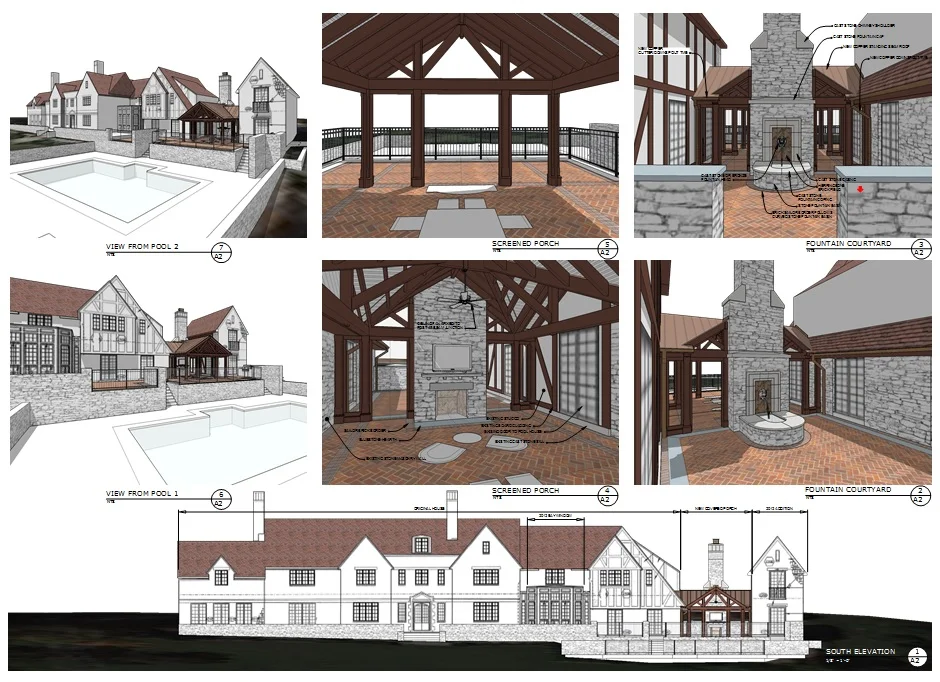

 Perspective views of the Design/Construction model.
       
     
 The interior of the new screened porch pavilion is defined by the smooth-dressed mahogany structural timber framing and can be partially enclosed or fully open to the exterior via electrically operated raising/lowering screens. Screens by "PhantomSc
       
     
 The inward-looking side of the pavilion features a wood burning exterior fireplace and tv wall as the focal point for entertaining.   *Featuring consulting desing/construction documentation work by JBNai for Gardner/Fox Associates Inc.. Photos court
       
     
 Plans & Sections.
       
     
 Construction Analytique of the chimney and fountain.
       
     
 The complete principal facade, featuring the new screened porch pavilion situated between the main and guest houses. *Featuring consulting desing/construction documentation work by JBNai for Gardner/Fox Associates Inc.. Photos courtesy of Gardner/Fo
       
     
Bryn Mawr Screened Porch Pavilion + Fountain Courtyard
       
     
Bryn Mawr Screened Porch Pavilion + Fountain Courtyard

The owner of this early 20th century Tudor styled residence wished to have a screened porch for entertaining. An underutilized courtyard space between a guesthouse and the original home was partially filled by a new timber-framed screened pavilion featuring an outdoor fireplace, fountain, and push-button retractable screens.

By JBNa for Gardner/Fox Associates Inc. on a consulting-architect basis. The Architect of Record is Mark Fox. Pictures are courtesy of Gardner/Fox Associates Inc.

 On the back side of the fireplace is the fountain, which graces the modified courtyard (now more enclosed) with a visual focal point and the pleasing sound of falling water. The fountain and basin has a cast stone surround and cast stone lion founta
       
     

On the back side of the fireplace is the fountain, which graces the modified courtyard (now more enclosed) with a visual focal point and the pleasing sound of falling water. The fountain and basin has a cast stone surround and cast stone lion fountain head. The field on the fountain wall is of terra cotta tile in a herringbone pattern.

By JBNai for Gardner/Fox Associates Inc. on a consulting basis. The Architect of Record is Mark Fox. Pictures are courtesy of Gardner/Fox Associates Inc.

 Design & Construction model of the proposed pavilion; Showing the new courtyard with chimney and fountain.  By JBNai for Gardner/Fox Associates Inc. on a consulting basis. The Architect of Record is Mark Fox.
       
     

Design & Construction model of the proposed pavilion; Showing the new courtyard with chimney and fountain.

By JBNai for Gardner/Fox Associates Inc. on a consulting basis. The Architect of Record is Mark Fox.

       
     
 Floor and Roof Plan.
       
     

Floor and Roof Plan.

 Perspective views of the Design/Construction model.
       
     

Perspective views of the Design/Construction model.

 The interior of the new screened porch pavilion is defined by the smooth-dressed mahogany structural timber framing and can be partially enclosed or fully open to the exterior via electrically operated raising/lowering screens. Screens by "PhantomSc
       
     

The interior of the new screened porch pavilion is defined by the smooth-dressed mahogany structural timber framing and can be partially enclosed or fully open to the exterior via electrically operated raising/lowering screens. Screens by "PhantomScreens, Timber framing by Hugh Lofting Inc.
*Featuring consulting desing/construction documentation work by JBNai for Gardner/Fox Associates Inc.. Photos courtesy of Gardner/Fox Associates Inc..

 The inward-looking side of the pavilion features a wood burning exterior fireplace and tv wall as the focal point for entertaining.   *Featuring consulting desing/construction documentation work by JBNai for Gardner/Fox Associates Inc.. Photos court
       
     

The inward-looking side of the pavilion features a wood burning exterior fireplace and tv wall as the focal point for entertaining.


*Featuring consulting desing/construction documentation work by JBNai for Gardner/Fox Associates Inc.. Photos courtesy of Gardner/Fox Associates Inc..

 Plans & Sections.
       
     

Plans & Sections.

 Construction Analytique of the chimney and fountain.
       
     

Construction Analytique of the chimney and fountain.

 The complete principal facade, featuring the new screened porch pavilion situated between the main and guest houses. *Featuring consulting desing/construction documentation work by JBNai for Gardner/Fox Associates Inc.. Photos courtesy of Gardner/Fo
       
     

The complete principal facade, featuring the new screened porch pavilion situated between the main and guest houses.
*Featuring consulting desing/construction documentation work by JBNai for Gardner/Fox Associates Inc.. Photos courtesy of Gardner/Fox Associates Inc..
